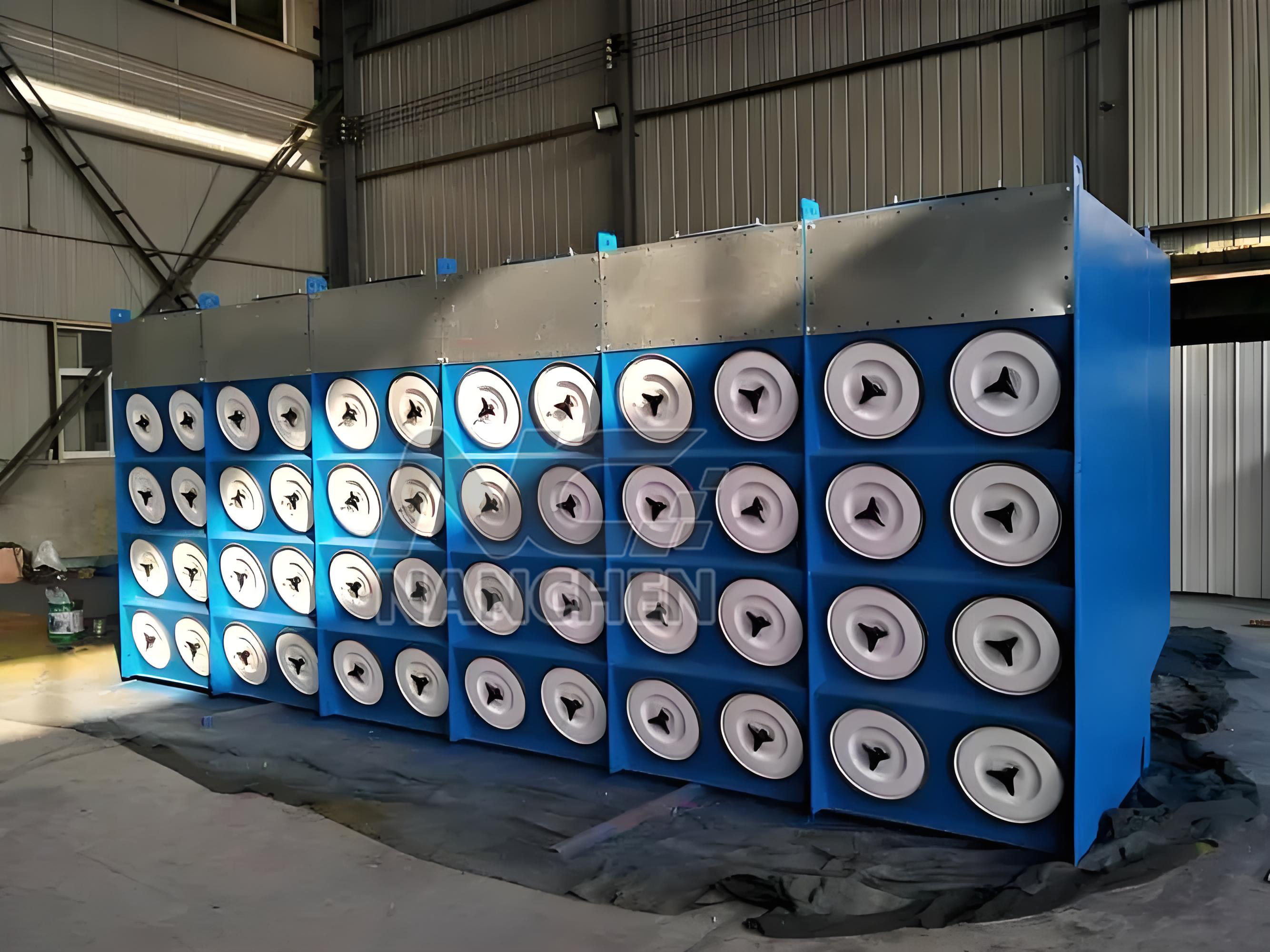

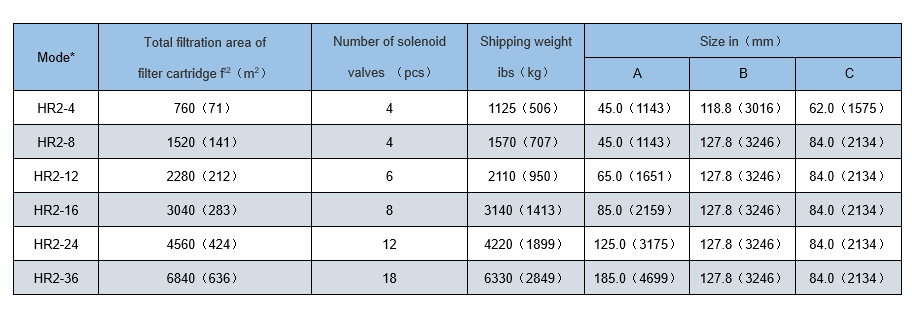

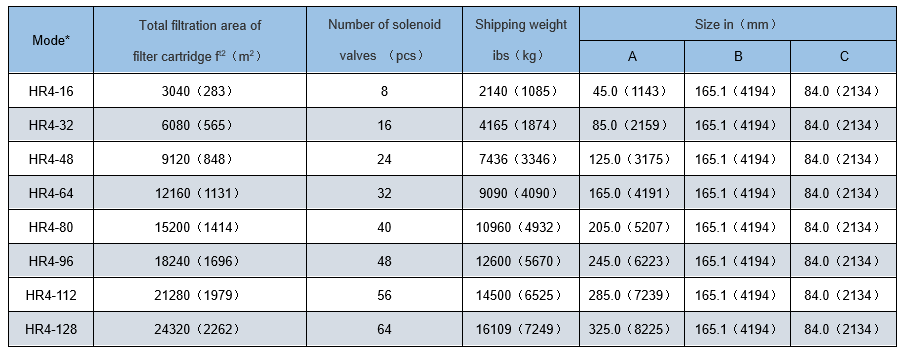

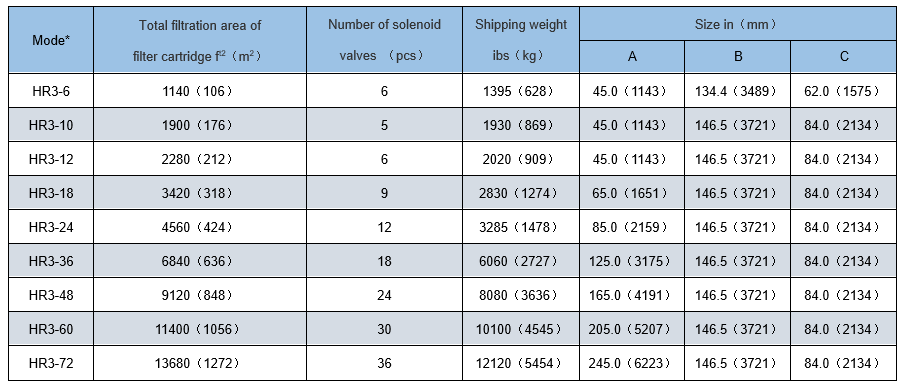

Working principle of filter cartridge dust collector:

        After the dusty gas enters the dust collector hopper, due to the sudden expansion of the airflow cross-section and the effect of the airflow distribution plate, some coarse particles in the airflow settle in the hopper under the action of dynamic and inertial forces; After the dust particles with fine particle size and low density enter the dust filter chamber, they deposit on the surface of the filter material through a combination of Brownian diffusion and screening effects. The purified gas enters the clean air chamber and is discharged through the exhaust pipe and fan.

       The resistance of the filter cartridge dust collector increases with the increase of the thickness of the dust layer on the surface of the filter material. Clean the dust when the resistance reaches a certain specified value. At this time, the PLC program controls the opening and closing of the pulse valve, the lifting valve of the first chamber is closed, the filtered airflow is cut off, and then the electromagnetic pulse valve is opened. Compressed air and a short period of time rapidly expand in the upper box and rush into the filter cartridge, causing the filter cartridge to expand and deform, generating vibration. Under the action of reverse airflow brushing, the dust attached to the outer surface of the filter bag is peeled off and falls into the ash hopper. After the dust cleaning is completed, the electromagnetic pulse valve closes, the lift valve opens, and the chamber returns to the filtering state. The cleaning process is carried out sequentially in each room, starting from the cleaning of each room and ending with the next cleaning cycle. The fallen dust falls into the ash hopper and is discharged through the ash removal valve.
