Successful Shipment of Qingdao NanChen Q376 Shot Blasting Machine & Z947S Core Shooting Machine
The Q376 Shot Blasting Machine and Z947S Core Shooting Machine produced by Qingdao NanChen have completed factory commissioning and been loaded for delivery to the customer’s site. A brief overview of the key specifications of these two pieces of equipment is provided below.
I. Q376 Single Hanger Type Shot Blasting Cleaning Machine
The Q376 shot blasting machine is a universal piece of equipment designed for cleaning small and medium-sized castings, with the following key features:
1.Workpiece Applicability: It can handle workpieces weighing up to 500kg with external dimensions within φ600×1200mm, suitable for surface cleaning of multi-variety, small-batch castings, forgings and steel structural components.
2. Cleaning Efficiency: Equipped with two 200kg/min blasting impellers, the machine delivers a total abrasive flow rate of 400kg/min. Paired with a 24T/h bucket elevator and 24T/h abrasive separator, it achieves high-speed abrasive circulation and separation, boosting cleaning efficiency by over 30% compared with conventional equipment.
3. Energy Consumption & Environmental Performance: The total rated power of the machine is only approximately 22.5kW, and it is fitted with a 4000m³/h high-efficiency dust extraction system to fully capture operational dust.
4. Installation & Maintenance: Designed with a pit-free structure to reduce infrastructure investment, the Q376 offers flexible operation, convenient maintenance and low operating costs.

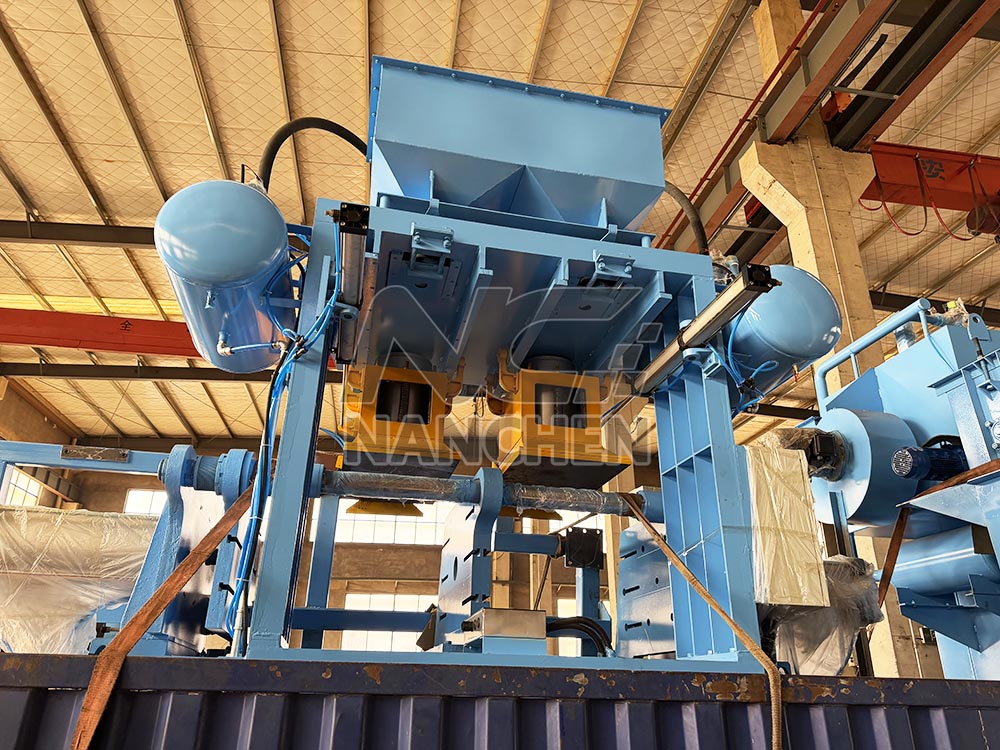

II. Z947S Double-Station Vertical Parting Hot Box Core Shooting Machine
The Z947S is a best-selling model in the Z94 series core shooting machines, specially developed for manufacturing small and medium-sized precision sand cores:
1. Mold Compatibility: With a platen size of 750×580mm, mold clamping stroke of 400mm, platen spacing of 295–695mm, and a maximum sand core weight of 25kg, it meets sand core production requirements for automotive engine cylinder blocks, hydraulic components, valves and other precision parts.
2. Core Making Precision: Operating at a stable working pressure of 0.6MPa, the Z947S ensures high sand compaction, delivering sand cores with high dimensional accuracy and excellent surface finish.
3. Production Efficiency: Featuring double-station operation for continuous production, it increases output by over 50% compared with single-station machines. Equipped with a PLC control system, it supports seamless switching between manual and automatic modes.
4. Safety Performance: The complete machine is fitted with safety interlock devices to provide all-round protection for operational safety.
Prior to shipment, our technical team conducted full commissioning on critical parameters including the blasting angle and abrasive circulation system of the shot blasting machine, as well as mold clamping accuracy and temperature control system of the core shooting machine, guaranteeing plug-and-play operation upon delivery. Qingdao NanChen will continue to provide reliable products and comprehensive services to help foundry enterprises enhance quality and productivity.
