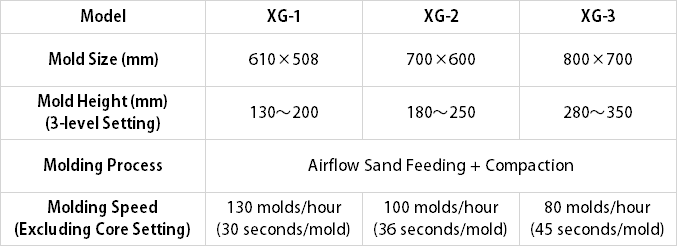

1.Molding Machine Parameters

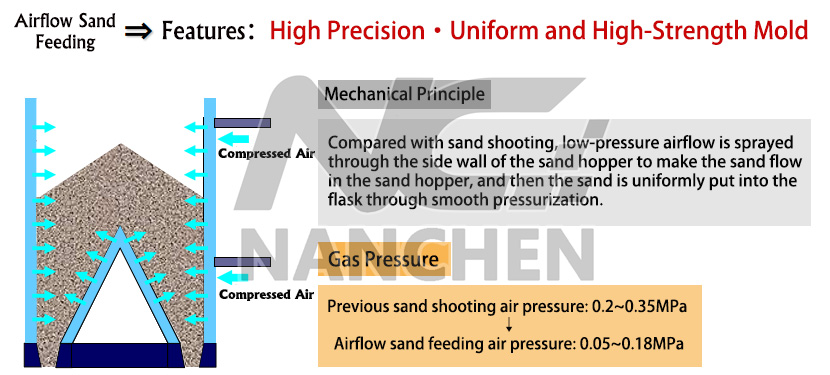

2.Sand Shooting Method

The unique sand shooting pressure control mechanism of the top airflow sand shooting system achieves consistent sand filling density.

Most double-sided templates used in traditional manual molding machines can be applied without major modifications.

The compact size can effectively utilize the existing floor space.

The lower mold shuttle mechanism makes core setting safe and easy to operate.

• The top sand shooting system does not require strict mold sand control. The equipment can be applied to mold sand with high compaction rate and hard texture.

• Adopt airflow sand feeding and precise mold drawing methods to achieve excellent mold strength and precision.

• The compaction pressure balance technology ensures stable molding by improving mold replication performance and preventing template deformation.

• The mold height feedback control reduces sand consumption and compensates for changes in CB value.

• Environmentally friendly and energy-saving. The noise level is as low as 75 dB (A).

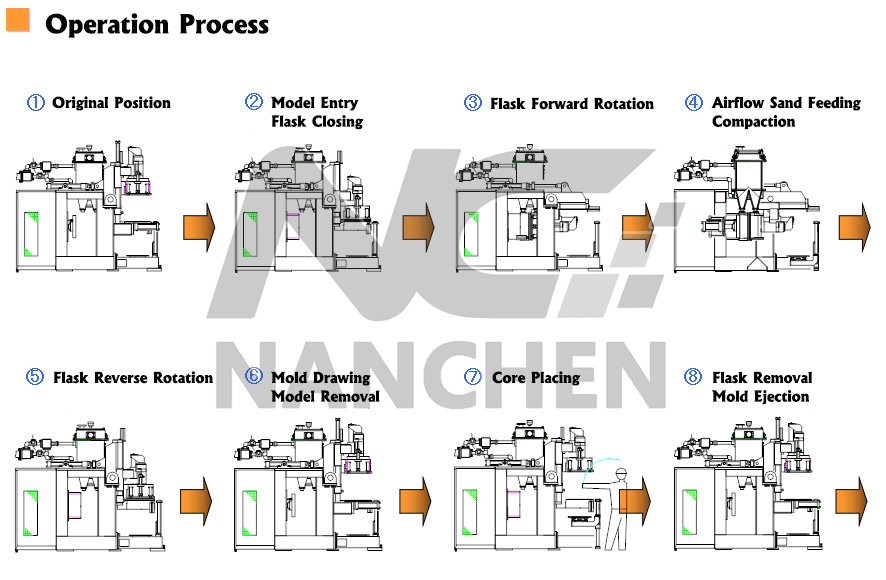

3.Operation Process

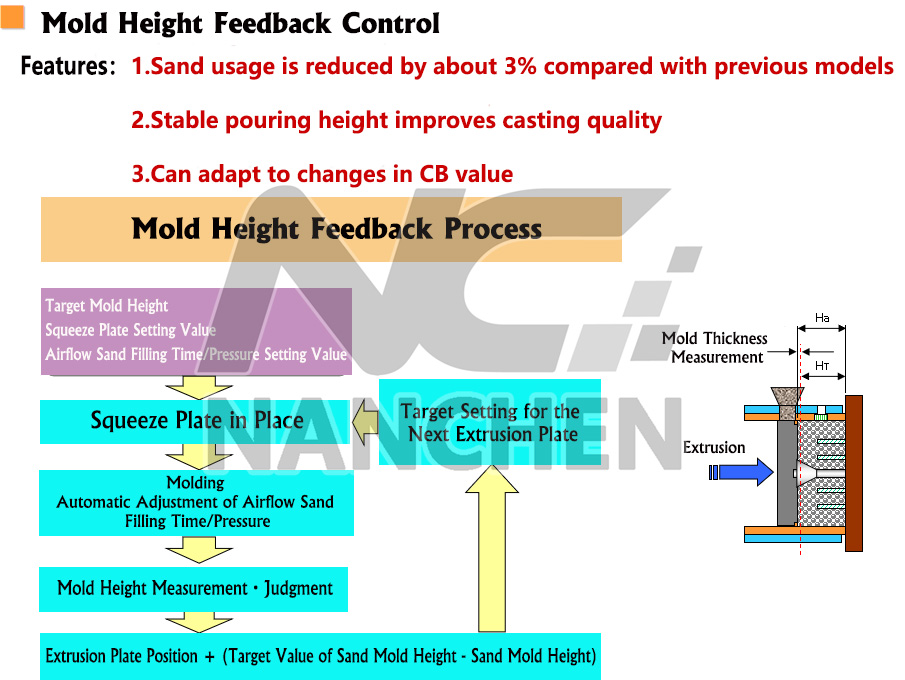

4.Automatic Mold Height Adjustment
