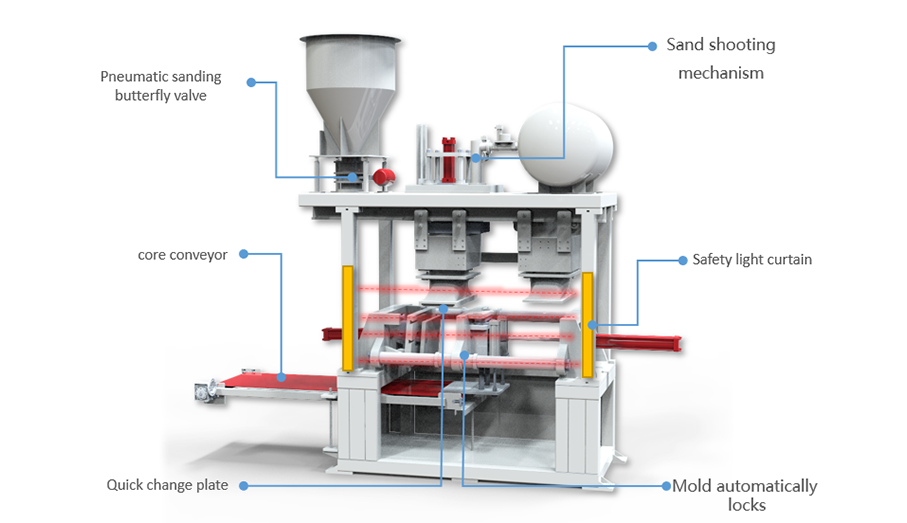

Z6540C is a verical parting type hot and cold automatic core shooting machine. After the machine blows the sand into the moldthrough the sand shooting mechanism, the triethylamine gas is blown by the air blowing mechanism to solidify the sand core.

The machine is eauipped with a sand core conveyor that can be lfted and lowered. After the sand core is solidifed, the fixed templateautomatically fips 90°to push the sand core out onto the convevor and send it to the outside of the machine, t does not need tomanually reach into the inside of the machine to take the core, which is more secure. high.

it is equipped with a photoelectric level gauge to accurately control the amount of sand inside the sand cylinder, which can avoid thephenomenon that the sand overflows and causes air leakage during sand shooting.

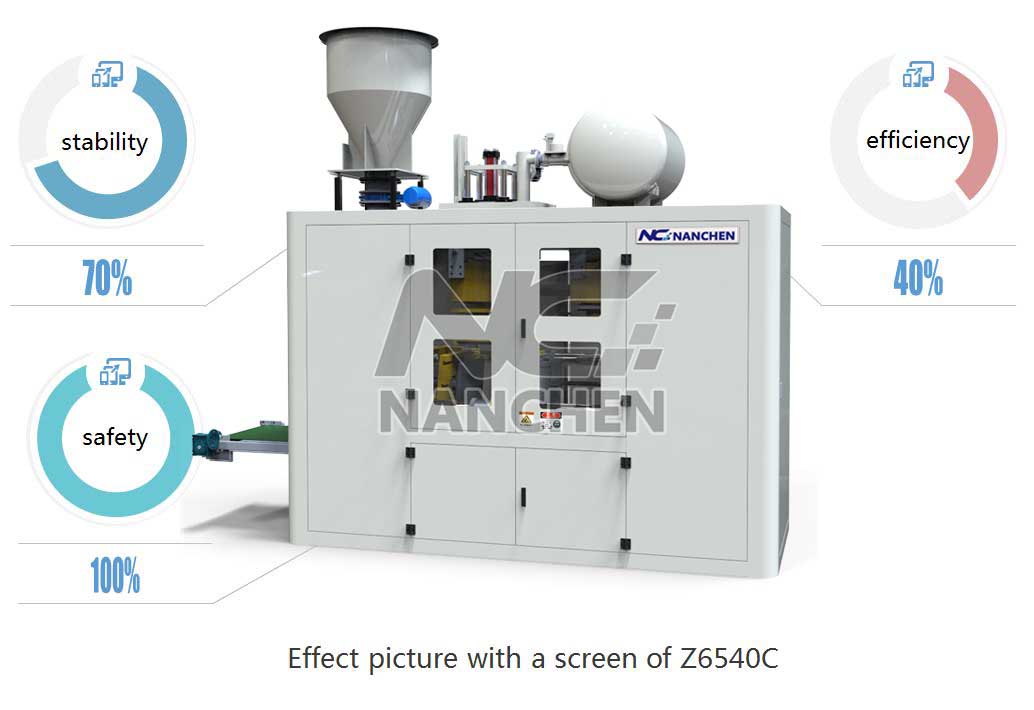

The machine has optional devices such as quick-change sandblasting board, safety light curtain and perimeter screen to improvework efficiency and operation safety. Customers can choose according to their needs.
